snap hook

비너 - 비너/안전비너/타원비너
고객의 완벽한 사업을 위한 최고의 제품

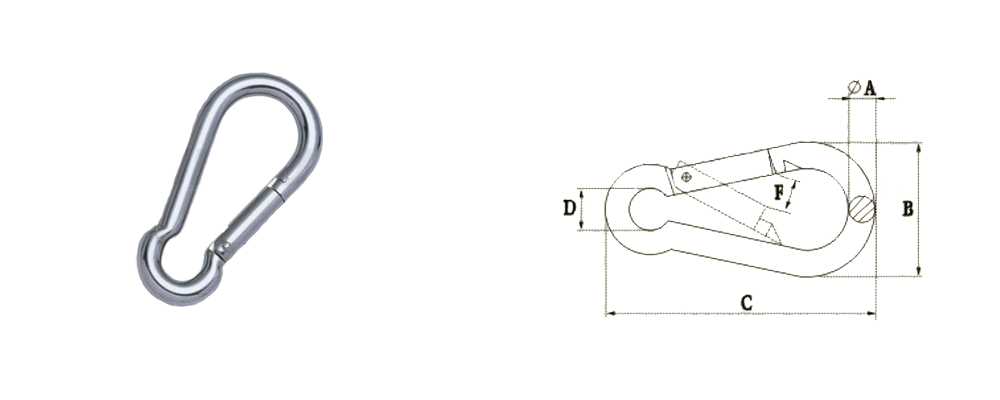

비너(SNAP HOOK)
SIZE
[mm]
ØA
[mm]
B
[mm]
C
[mm]
D
[mm]
F
[mm]
W.L.L.
[LBS]
4X40 4 20 40 7 7 80
5X50 5 25 50 8 7 100
6X60 6 30 60 9 8 140
7X70 7 35 70 10 8 200
8X80 8 40 80 12 9 250
9X90 9 45 90 12 10 280
10X100 10 50 100 15 11 400
11X120 11 57 120 18 16 500
12X140 12 67 140 20 19 600
13X160 13 74 160 22 25 700
14X180 14 86 180 22 35 900

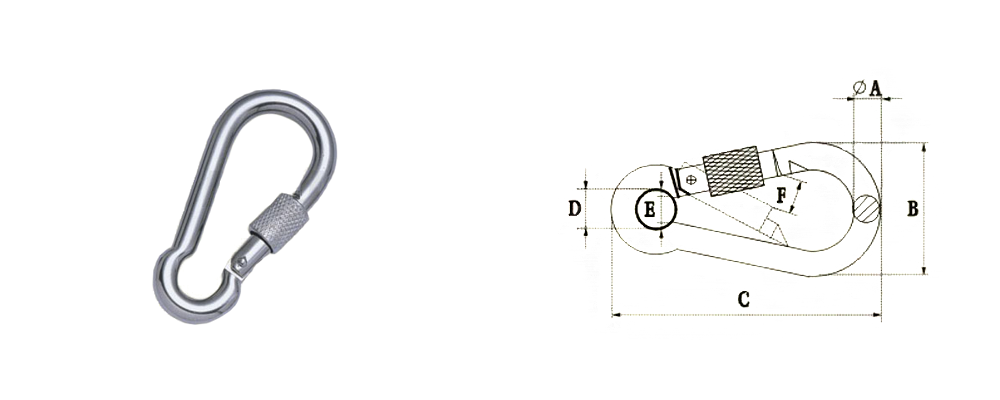

안전비너(Snap Hook with Screw)
SIZE
[mm]
ØA
[mm]
B
[mm]
C
[mm]
D
[mm]
F
[mm]
W.L.L.
[LBS]
4X40 4 20 40 7 7 80
5X50 5 25 50 8 7 100
6X60 6 30 60 9 8 140
7X70 7 35 70 10 8 200
8X80 8 40 80 12 9 250
9X90 9 45 90 12 10 280
10X100 10 50 100 15 11 400
11X120 11 57 120 18 16 500
12X140 12 67 140 20 19 600
13X160 13 74 160 22 25 700
14X180 14 86 180 22 35 900

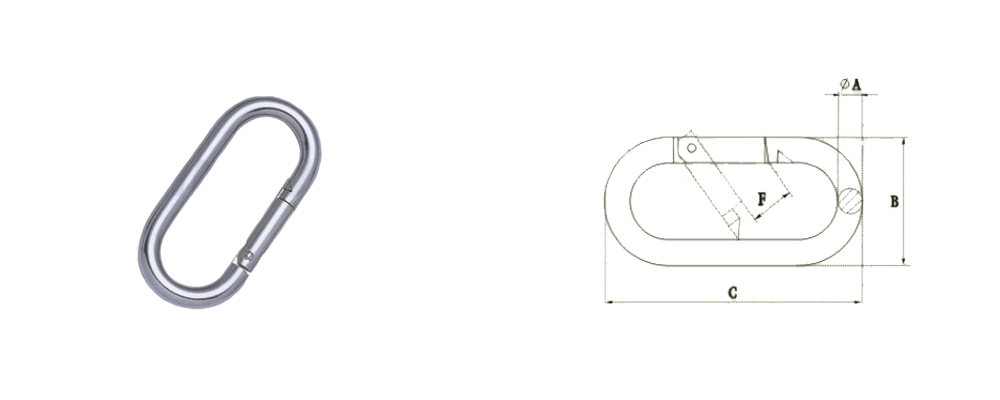

타원비너(Straight Snap Hook)
SIZE
[mm]
ØA
[mm]
B
[mm]
C
[mm]
F
[mm]
W.L.L.
[LBS]
5X50 5 25 50 9 100
6X60 6 30 60 11 140
8X80 8 40 80 13 250
10X100 10 50 100 16 400
11X120 11 58 120 21 500
