lever block
레바블럭
- 레바블럭
고객의 완벽한 사업을 위한 최고의 제품

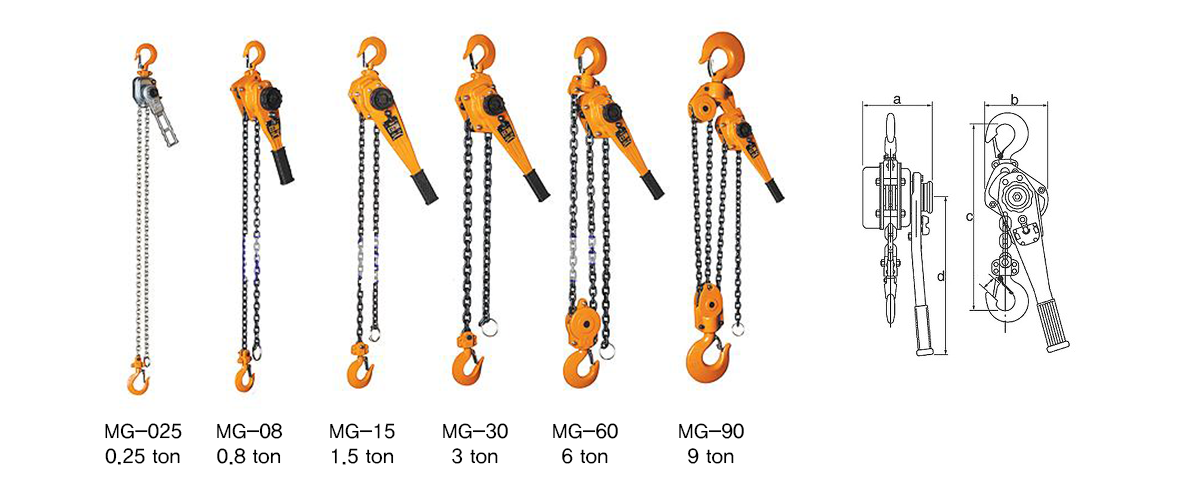

| 모델 | MG-025 | MG-08 | MG-15 | MG-30 | MG-60 | MG-90 |
| CAPACITY | 0.25 ton | 0.8 ton | 1.5 ton | 3.0 ton | 6.0 ton | 9.0 ton |
| STANDARD LIFT | 1.2m | 1.5m | 1.5m | 1.5m | 1.5m | 1.5m |
| LOAD CHAIN | 4.0 x 21 | 6.3 x 19.1 | 7.1 x 21 | 9.0 x 27 | 9.0 x 27 | 9.0 x 27 |
| NET WEIGHT | 2.0 kg | 8.0 kg | 11.0 kg | 17.0 kg | 26.0 kg | 48.0 kg |
| MIN DISTANCE | 245 | 280 | 330 | 450 | 550 | 690 |
| BETWEEN HOOKS | ||||||
| PULLING EFFORTS | 25 kg | 27 kg | 29 kg | 37 kg | 37 kg | 37 kg |
| a | 99mm | 157mm | 175mm | 198mm | 198mm | 198mm |
| b | 60mm | 152mm | 145mm | 190mm | 235mm | 320mm |
| c | 1,310mm | 1,900mm | 1,960mm | 2,050mm | 2,120mm | 2,300mm |
| g | 20mm | 27mm | 32mm | 38mm | 46mm | 70mm |
| d | 150mm | 280mm | 390mm | 390mm | 390mm | 390mm |
