chain block
체인블럭
- 체인블럭
고객의 완벽한 사업을 위한 최고의 제품

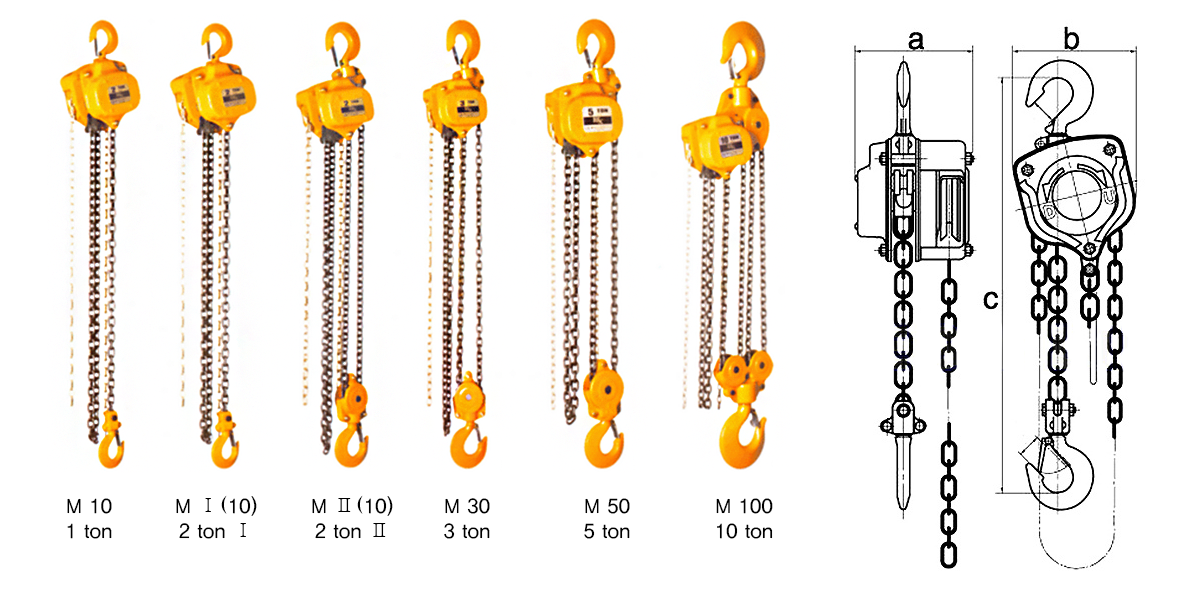

| 모델 | M05 | M10 | M15 | M I(20) | M II(20) | M30 | M50 | M100 |
| STANDARD LIFT | 2.5m | 2.5m | 2.5m | 3m | 3m | 3m | 3m | 3.5m |
| LOAD CHAIN | 6.3 x 19.1 | 6.3 x 19.1 | 7.1 x 21 | 7.9 x 23 | 6.3 x 19.1 | 7.1 x 23 | 9.0 x 27 | 9.0 x 27 |
| HAND CHAIN | 5.0 x 22.8 | 5.0 x 22.8 | 5.0 x 22.8 | 5.5 x 23.6 | 5.0 x 22.8 | 5.0 x 22.8 | 5.5 x 23.6 | 5.5 x 23.6 |
| NET WEIGHT | 11.0 kg | 11.5 kg | 13.8 kg | 21.6 kg | 17.0 kg | 23.0 kg | 41.0 kg | 78.0 kg |
| MIN DISTANCE | 315mm | 315mm | 340mm | 380mm | 380mm | 475mm | 635mm | 760mm |
| BETWEEN HOOKS | ||||||||
| PULLING EFFORTS | 24 kg | 33 kg | 34 kg | 34 kg | 34 kg | 35 kg | 39 kg | 41 kg |
| a | 147mm | 147mm | 147mm | 179mm | 147mm | 147mm | 179mm | 179mm |
| b | 154mm | 154mm | 174mm | 204mm | 190mm | 206mm | 263mm | 367mm |
| c | 315mm | 315mm | 340mm | 380mm | 380mm | 475mm | 635mm | 760mm |
| TEST LOAD | 750 kg | 1,500 kg | 2,360 kg | 3,000 kg | 3,000 kg | 4,750 kg | 6,300 kg | 12,500 kg |

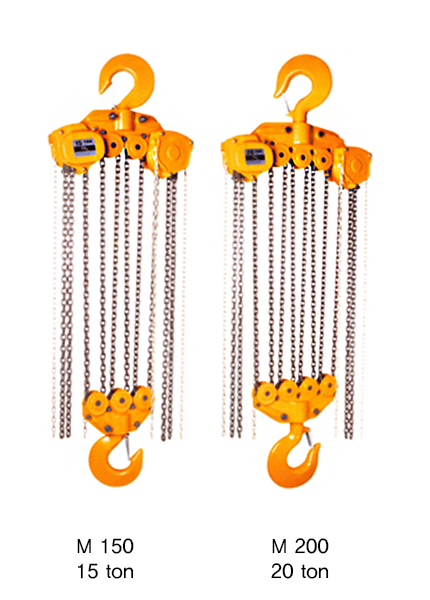

| 모델 | M150 | M200 |
| STANDARD LIFT | 3.5m | 3.5m |
| LOAD CHAIN | 9.0 x 27 | 9.0 x 27 |
| HAND CHAIN | 5.5 x 23.6 | 5.5 x 23.6 |
| NET WEIGHT | 150.0 kg | 190.5 kg |
| MIN DISTANCE | 850mm | 870mm |
| BETWEEN HOOKS | ||
| PULLING EFFORTS | 41 kg x 2 kg | 41 kg x 2 kg |
| a | 179mm | 179mm |
| b | 754mm | 873mm |
| c | 850 mm | 870mm |
| TEST LOAD | 20,000 kg | 25,000 kg |
