snap hook

ºñ³Ê - Äü¸µÅ©/»ï°¢Äü¸µÅ©
°í°´ÀÇ ¿Ïº®ÇÑ »ç¾÷À» À§ÇÑ ÃÖ°íÀÇ Á¦Ç°

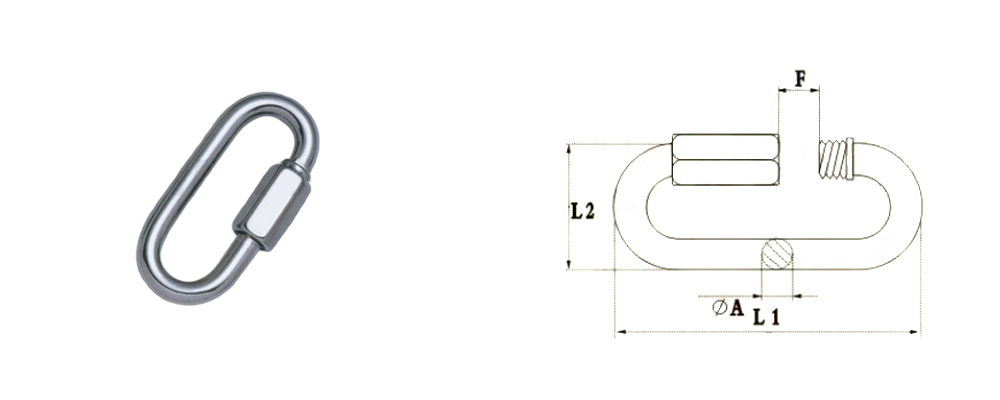

Äü¸µÅ©(QUICE LINK)
SIZE
[mm]
ØA
[mm]
L1
[mm]
L2
[mm]
W.L.L.
[LBS]
3.5 3.5 36.5 17 175
4 4 40 19.5 500
5 5 49 23 650
6 6 58 26.5 875
7 7 65 30.5 1200
8 8 75 33.5 1525
9 9 82 35 1975
10 10 90 40.5 2300
12 12 107 47.5 2500
14 14 125 17 2800

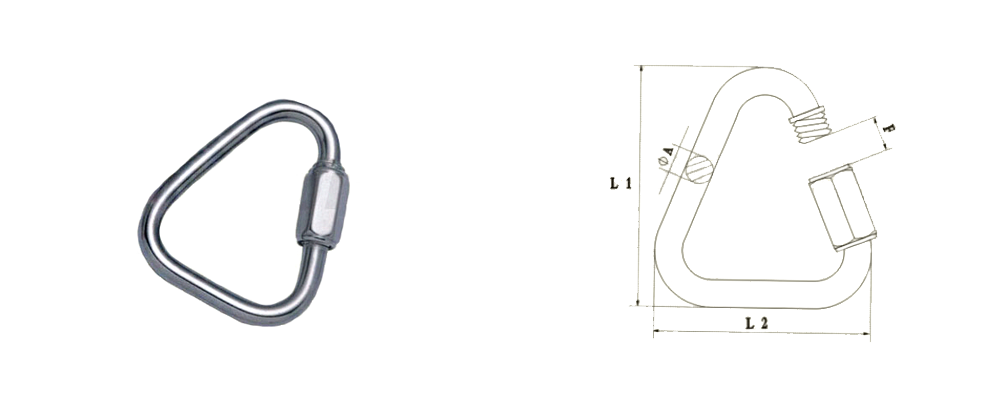

»ï°¢Äü¸µÅ©(Delta Shape Quick Link)
SIZE
[mm]
ØA
[mm]
L1
[mm]
L2
[mm]
F
[mm]
W.L.L.
[LBS]
3.5 3.5 37 31 5 120
5 4 47 40 6 450
6 5 56 47 7.5 600
8 6 73 56 10 1100
10 7 87 66 12 1500
12 8 104 75 15 1650
14 9 122 86 19 1900
