후크 - 아이후크

고객의 완벽한 사업을 위한 최고의 제품

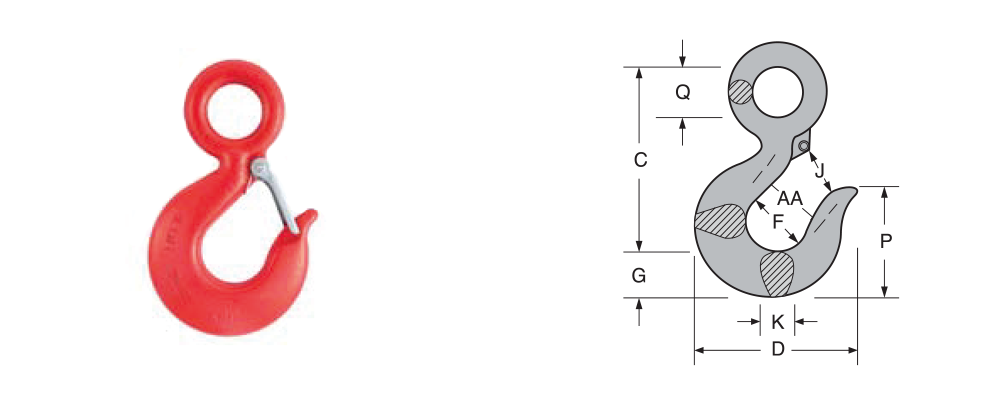

아이후크(Eye Hook)

S.W.L(T)		Dimensions(mm)								Deformation Indicator
Carbon	Alloy	C	D	F	G	J	K	P	Q	Deformation Indicator
0.5	-	70	60	27	22	25	15	58	20	-
3/4	1	85	72	32	18	23	16	50	19	38.1
1	1 1/2	97	79	35	21	24	18	57	23	50.8
1 1/2	2	105	90	38	25	27	22	62	28	76.2
2	3	119	100	41	28	30	24	71	32	50.8
3	5	147	122	50	36	38	33	89	40	63.5
5	7	187	159	63	46	45	42	115	50	76.2
7	11	230	189	76	57	61	41	135	62	101.6
10	15	256	210	82	66	67	49	152	72	101.6
15	22	318	262	108	76	87	60	175	89	127
20	30	357	345	125	91	100	75	223	89	165

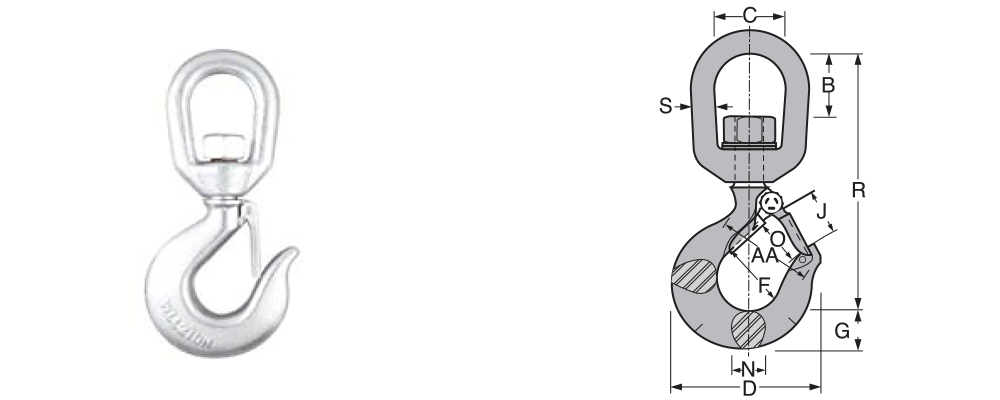

슈벨후크(Swivel Hook)

S.W.L(T)		Dimensions(mm)										Weight (kg)
Carbon	Alloy	B	C	D	F	G	J	N	O	R	S	Weight (kg)
3/4	-	21	32	73	32	18	24	16	23	116	10	0.3
1	-	33	38	80	35	21	25	18	24	136	13	0.6
1 1/2	-	38	45	91	38	25	27	22	27	155	16	1
2	-	38	45	102	41	28	30	24	30	165	16	1
3	-	42	50	123	50	36	38	29	36	190	19	2.3
5	7	58	63	160	63	46	45	36	43	245	25	4.7
-	11	60	70	190	76	57	61	41	56	289	29	7.4
-	15	62	79	211	82	65	66	49	76	304	31	10
-	22	95	104	263	107	75	86	60	82	421	37	21

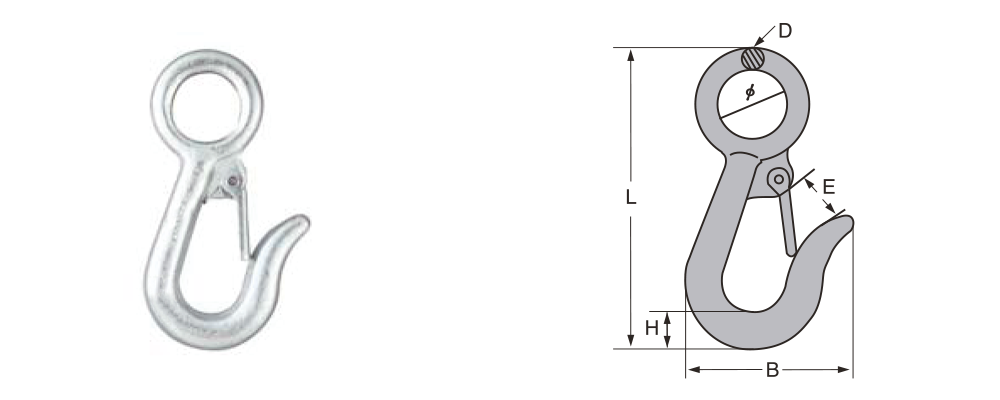

아이스냅후크(Eye Snap Hook)

Size (in)	S.W.L (T)	Dimensions(mm)						Weight (kg)
Size (in)	S.W.L (T)	Ø	D	E	B	H	L	Weight (kg)
9/16	0.45	28	8	19.5	68	15	123	0.24
7/16	0.41	18	7	19	60	16	104	0.22

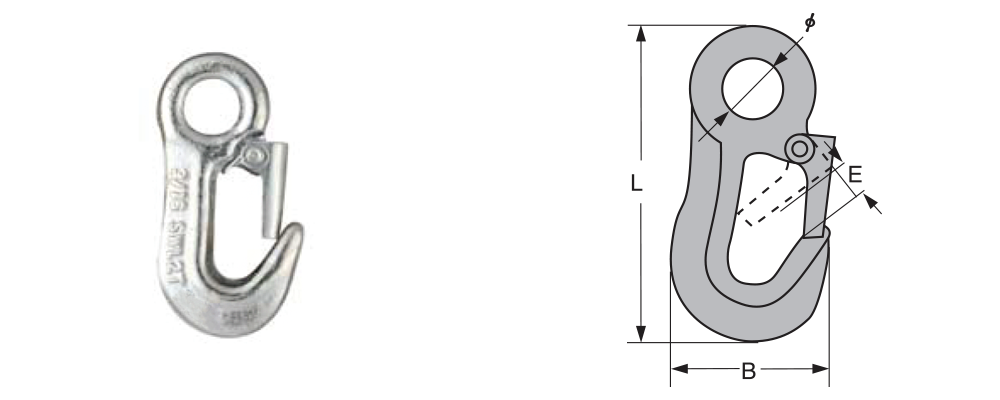

윈치후크(S/E Hook)

Size (in)	B.T.L (T)	Dimensions(mm)				Weight (kg)
Size (in)	B.T.L (T)	Ø	B	E	L	Weight (kg)
3/16	1.5	18	46	11	93	0.16

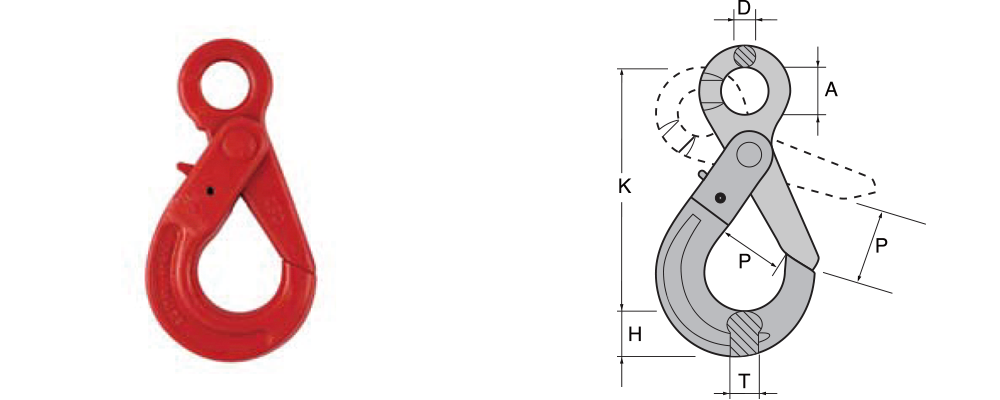

안전레치훅/아이형(G80 Safty Hook Eye Type)

Chain Size (mm)	S.W.L (T)	Dimensions(mm)						Weight (kg)
Chain Size (mm)	S.W.L (T)	K	P	A	D	T	H	Weight (kg)
6	1.2	110	28	22	10	15	19	0.5
7.8	2	134	34	25	12	19	24	0.8
10	3.2	170	45	32	13	24	31	1.5
13	5.4	206	54	40	17	27	40	3.2
16	8.2	249	63	56	22	36	53	6.1
18.2	12.5	273	81	64	24	47	55	7.5
22	15.5	320	82	70	25	48	64	14
26	21.2	363	110	80	34	75	75	18
32	31.5	470	155	105	45	97	100	44.5

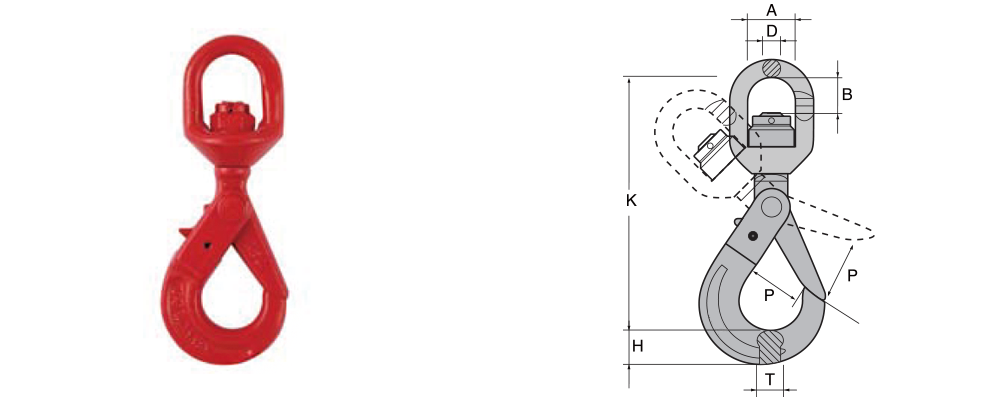

안전레치훅/슈벨형(G80 Safty Hook Swivel Type)

Chain Size (mm)	S.W.L (T)	Dimensions(mm)							Weight (kg)
Chain Size (mm)	S.W.L (T)	K	P	B	A	D	T	H	Weight (kg)
6	1.2	150	28	23	33	11	15	20	0.8
7.8	2	185	34	27	34	13	19	24	1.2
10	3.2	217	45	35	42	16	23	30	1.5
13	5.4	268	54	41	48	21	27	40	4.5
16	8.2	330	62	54	61	22	37	49	8
18.2	12.5	365	78	70	72	24	45	57	12
22	15	390	84	95	97	33	50	67	16

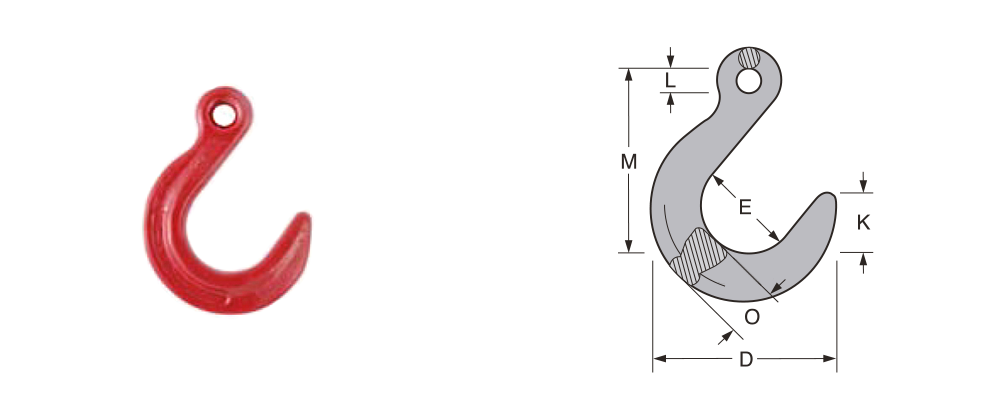

파운드리훅(G80 Eye Type Foundry Hook)

Chain Size (mm)	S.W.L (T)	Dimensions(mm)					Weight (kg)
Chain Size (mm)	S.W.L (T)	D	E	L	M	O	Weight (kg)
10	3.2	146	76	22	146	38	2
13	5.4	171	89	27	175	45	3
16	8.2	198	102	32	205	52	5.5
20	12.8	232	114	38	235	65	8.8
22	15.5	256	127	44	264	71	12
26	21.6	283	140	62	294	77	16.9
32	32.8	322	152	80	327	97	26.5
